标量函数矩阵求导方法

1 矩阵求导的定义

标量f对矩阵X的导数，定义为: $$\frac{\partial f}{\partial X} = \left[ \frac{\partial f}{\partial X_{ij}}\right]$$ 也就是逐元素求导的和X尺寸一致的矩阵。

2 矩阵导数表示方法

2.1 标量对标量和向量的导数

1. 在标量对标量的导数中，导数和微分的联系为： $$df = f^{'}(x)dx$$

2. 在标量对向量的导数中，引入了梯度的概念： $$df = \sum_{i=1}^n\frac{\partial f}{\partial x_i}dx_i = \frac{\partial f}{\partial \textbf{x}} d \textbf{x}$$ 这里面，第一个等会是因为全微分公式，第二个等号表达了梯度和微分的关系。可以理解为，当$\textbf{x}​$方向上每增加$\Delta \textbf{x}​$, $f​$的增量$\Delta f = \left< \frac{\partial f}{\partial \textbf{x} }, \Delta x \right> + o(\Delta x)​$

2.2 标量对矩阵的导数

$$df = \sum_{i = 1}^m \sum_{j = 1}^n \frac{\partial f}{\partial X_{ij}} dX_{ij} = tr\left( \frac{\partial f}{\partial X}^T dX \right)$$

对尺寸相同的矩阵A,B，$tr(A^TB) = \sum_{i,j}A_{ij}B_{ij}$，即是$tr(A^TB)$矩阵A,B的内积。这里第一个等号是全微分公式，第二个等号表达了矩阵导数与微分的联系

3 矩阵微分运算法则

1. 一般运算

2. 加减法 $$d(X\pm Y) = dX \pm dY$$ 证明很显然

3. 乘法 $$d(XY) = (dX)Y+X(dY)\\ 证明： d([\sum_{k} X_{ik}Y_{kj}]) = [\sum_{k}d(X_{ik}Y_{kj})] \\=[\sum_{k}d(X_{ik})Y_{kj} + \sum_{k}X_{ik}dY_{kj}] \\=(dX)Y+XdY$$

4. 转置和矩阵的迹 $$d(X^T)=(dX)^T\\ dtr(X) = tr(dX)$$

5. 逆运算

$$d(X^{-1}) = -X^{-1}dXX^{-1}\\ 证明：dE=d(X^{-1}X) \\=d(X^{-1})X + X^{-1}dX =0 \\ \longrightarrow d(X^{-1}) = -X^{-1}dXX^{-1}$$

1. 行列式

$$d|X| = tr(X^*dX)\\ 当X可逆时，d|X| = |X|tr(X^{-1}dX)\\ $$

• 证明： $$|X| = \sum_{i=1}^n c_{ij}x_{ij}\\ \frac{\partial |X|}{\partial x_{ij}}=c_{ij}\\ d|X| = \sum_{i = 1}^n\sum_{j = 1}^n c_{ij}dx_{ij} = tr(X^*dX)$$

• 逐元素乘法

• $$d(X\otimes Y) = dX \otimes Y + X \otimes dY\\ 证明： d([X_{ij}Y_{ij}])=[dX_{ij}Y_{ij} + X_{ij}dY_{ij}]=dX\otimes Y+X \otimes dY$$

• 逐元素函数：

• $$d\sigma(X) = \sigma'(X)dX\\ 其中，\sigma(X) = [\sigma(X_{ij})], \sigma'(X) = [\sigma'(X_{ij})]$$

4 矩阵微分和导数的转换

4.1 迹技巧(trace trick)

1. 对于标量$a = tr(a)$
2. 转置：$tr(A^T)=tr(A)$

3. 加减法：$tr(A \pm B) = tr(A) \pm tr(B)$

4. 矩阵乘法交换：

5. $$tr(AB) = tr(BA),其中A与B^T尺寸相同, 两侧都等于\sum_{i,j}=A_{ij}B{ji}$$

6. 交换律

7. $$tr(A^T(B\otimes C)) = tr((A \otimes B)^TC)\\ 证明：tr(A^T(B\otimes C))= \sum_{i,j}A_{ij}B_{ij}C_{ij}=tr((A \otimes B)^TC)$$

4.3 微分和导数（梯度）关系

1. 对于向量

2. 由$df = \frac{\partial f}{\partial x}^T dx$, 则可以得到若$df = Adx$, 则$\frac{\partial f}{\partial x} = A^T$

3. 对于矩阵

4. 由于$df = tr\left( \frac{\partial f}{\partial X}^T dX \right) ​$, 可以得到如果$df = tr(AdX)​$, 则$\frac{\partial f}{\partial x}=A^T​$

5. 若标量函数f是矩阵X经加减乘法、逆、行列式、逐元素函数等运算构成，则使用相应的运算法则对f求微分，再使用迹技巧给df套上迹并将其它项交换至dX左侧，对照导数与微分的联系就能得到导数。

5 复合函数求导

1. 不能随意沿用标量的链式法则, 因为矩阵对矩阵的导数未定义。所以应该从微分入手，写写出$df = tr(\frac{\partial f}{\partial Y}^TdY)​$， 然后把$dY​$用$dX​$表示出来

2. 对于$Y=AXB$, 有 $$df = tr(\frac{\partial f}{\partial Y}^T dY) \\= tr(\frac{\partial f}{\partial Y}^T AdXB) \\=tr(B\frac{\partial f}{\partial Y}^T AdX) \\=tr((A^T\frac{\partial f}{\partial Y}B^T)dX) \\ \longrightarrow \frac{\partial f}{\partial X} = A^T\frac{\partial f}{\partial Y}B^T$$

3. 对于$f​$和$g​$都是标量，且$\frac{\partial g}{\partial A}​$已知，则$\frac{\partial f}{\partial A}=\frac{\partial f}{\partial g}\frac{\partial g}{\partial A}​$

4. 证明： $$df = \frac{\partial f}{\partial g} dg \\ = \frac{\partial f}{\partial g}tr(\frac{\partial f}{\partial A}^TdA) \\ = tr((\frac{\partial f}{\partial g}\frac{\partial f}{\partial A})^TdA) \\ \longrightarrow \frac{\partial f}{\partial A}=\frac{\partial f}{\partial g}\frac{\partial g}{\partial A}$$

6 算例

1. $f = a^TXb$, 求$\frac{\partial f}{\partial X}​$, 其中a和b是向量。 $$df = d(a^TXb) \\={da}^TXb + a^TdXb + a^TXdb \\= a^TdXb \\= tr(a^TdXb) \\= tr((ab^T)^TdX) \\ \rightarrow \frac{\partial f}{\partial X} = ab^T$$

2. $f = a^Texp(Xb)$, 求$\frac{\partial f}{\partial X}$。 $$df = d(a^Texp(Xb)) \\= a^T(exp(Xb)\otimes((dX)b)) \\= tr((a\otimes exp(Xb))^T\otimes((dX)b))) \\= tr((a \otimes exp(Xb))^T(dX)b)) \\ = tr(b(a \otimes exp(Xb))^TdX) \\ = tr((a \otimes exp(Xb)b^T)^TdX) \\ \longrightarrow \frac{\partial f}{\partial X}=(a\otimes exp(Xb))b^T$$

3. $f=tr(Y^TMY), Y = \sigma(WX)$, 求$\frac{\partial f}{\partial X}$ , 其中$M$是对称矩阵。 $$df = d(tr(Y^TMY)) \\ =tr(d(Y^TMY)) \\ = tr((dY)^TMY + Y^TMdY) = tr((MY + M^TY)^T dY) \\ = tr((2MY)^T dY) \\ = tr((2MY)^T \sigma'(WX)\otimes (WdX)) \\ = tr((2MY \otimes \sigma'(WX))^TWdX) \\ = tr(W^T(2M\sigma(WX) \otimes \sigma'(WX))^TdX) \\ \longrightarrow \frac{\partial f}{\partial X} = W^T(2M\sigma(WX) \otimes \sigma'(WX))^T$$

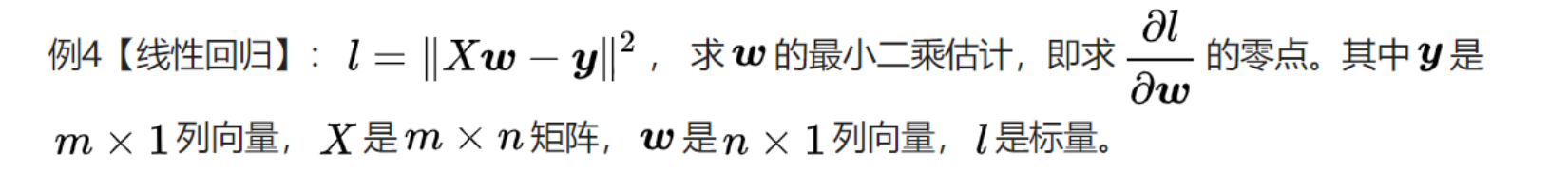

4.

$$dl = d((Xw-y)^T(Xw - y)) = (Xdw)^T(Xw - y) + (Xw - y)^TXdw \\ = tr((2X^T(Xw - y))^Tdw) \\ \longrightarrow \frac{\partial l}{\partial w} = 2X^T(Xw - y) = 0 \\ \longrightarrow w = (XX^T)^{-1}X^Ty$$

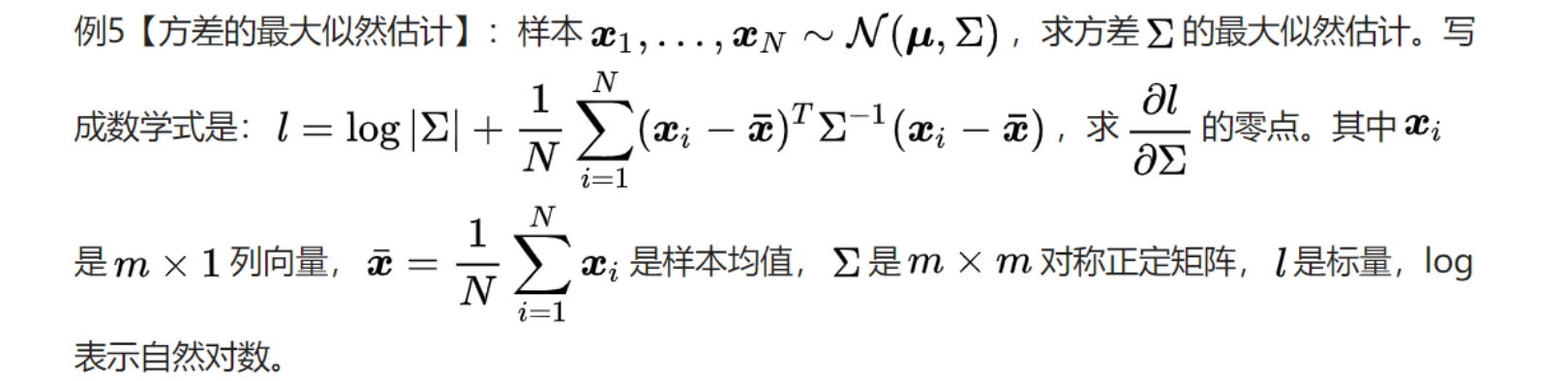

1. $$dl = d(\log|\Sigma| + \frac{1}{N}\sum_{i = 1}^N(x_i - \overline x)^T\Sigma^{-1}(x_i - \overline x)) \\ = |\Sigma|^{-1}|\Sigma|tr(\Sigma^{-1}d\Sigma) + \frac{1}{N}\sum_{i = 1}^N (x_i - \overline x)^Td(\Sigma^{-1})(x_i - \overline x) \\ = tr(\Sigma^{-1}d\Sigma - \frac{1}{N}\sum_{i = 1}^N (x_i - \overline x)^T\Sigma^{-1}(d\Sigma)\Sigma^{-1}(x_i - \overline x)) \\ = tr(\Sigma^{-1}d\Sigma - \frac{1}{N}\sum_{i = 1}^N \Sigma^{-1}(x_i - \overline x)(x_i - \overline x)^T\Sigma^{-1}(d\Sigma)) \\ = tr((\Sigma^{-1} - \frac{1}{N}\sum_{i = 1}^N \Sigma^{-1}(x_i - \overline x)(x_i - \overline x)^T\Sigma^{-1})^Td\Sigma) \\ \longrightarrow \Sigma = \frac{1}{N}(x_i - \overline x)(x_i - \overline x)^T$$

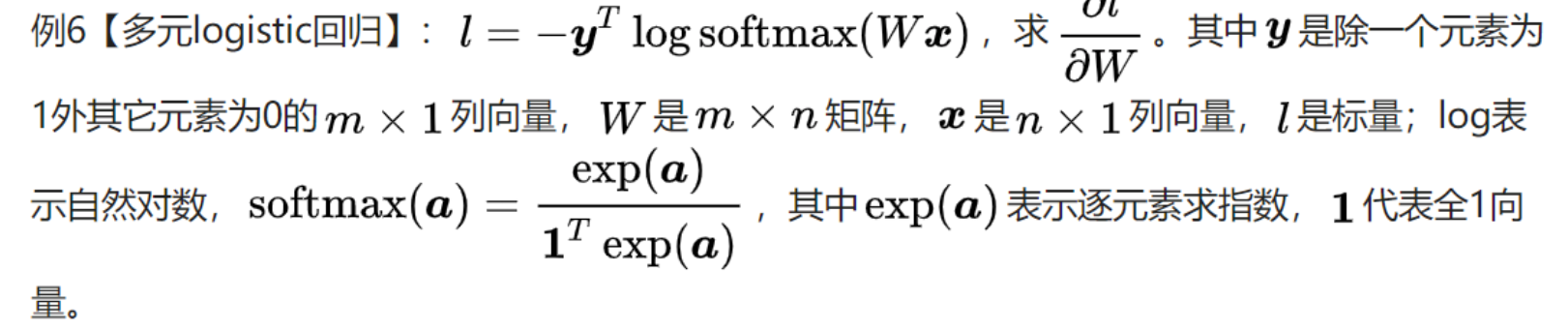

2. $$dl = -y^Td(log(\frac{exp(Wx)}{1^Texp(Wx)})) \\=-y^Td(Wx - log(1^Texp(Wx))) \\ = -y^TdWx+\frac{1^T(exp(Wx)\otimes dWx)}{1^Texp(Wx)} \\ = tr(-xy^TdW+\frac{(exp(Wx)x^T)^T dW}{1^Texp(Wx)}) \\ = tr((-yx^T + \frac{(exp(Wx)x^T)}{1^Texp(Wx)})^TdW) \\ = tr((-yx^T + softmax(Wx)x^T)^TdW) \\ = tr(((softmax(Wx) - y)x^T)^TdW) \\ \longrightarrow \frac{\partial l}{\partial W} = (softmax(Wx) - y)x^T$$

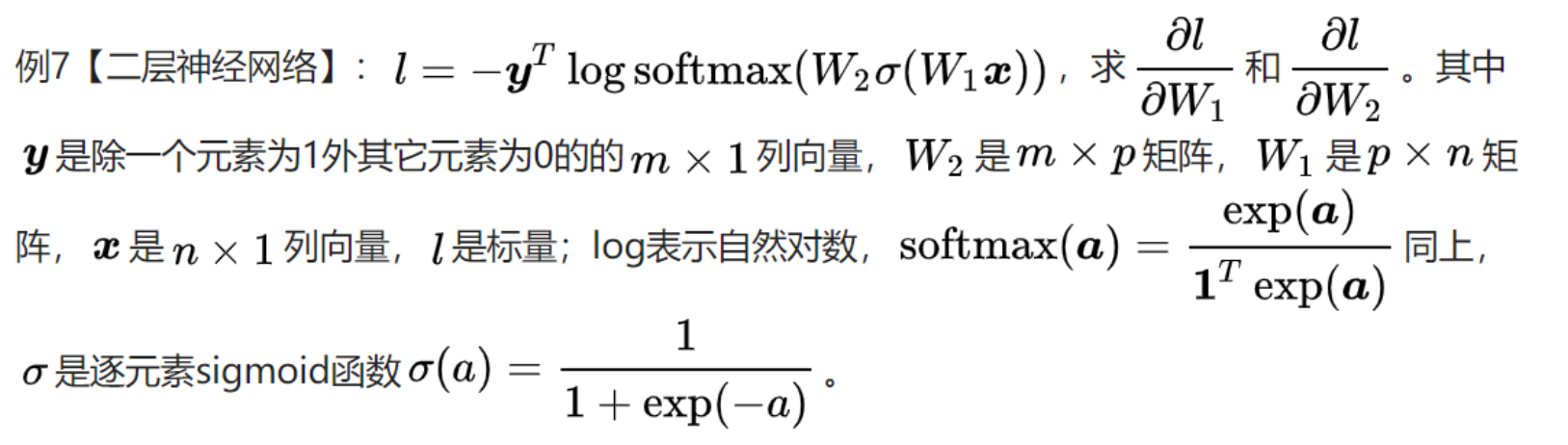

3.

4. $$l = tr((softmax(Wa) - y)^Tda) \\ = tr((softmax(Wa) - y)^TdW_2\sigma(W_1x)) \\ = tr(((softmax(Wa) - y)\sigma(W_1x)^T)^TdW_2) \\ \longrightarrow \frac{\partial l}{\partial W_2} = (softmax(Wa) - y)\sigma(W_1x)^T$$

5. $$l = -y^T\log softmax(a), a = W_2\sigma(W_1x)\\ dl = tr((softmax(Wa) - y)^Tda) \\ = tr((softmax(Wa) - y)^TW_2(\sigma'(W_1x)\otimes (dW_1x))) \\ = tr(((W_2^T(softmax(Wa) - y)) \otimes \sigma'(W_1x)x^T)^TdW_1)) \\ \longrightarrow \frac{\partial l}{\partial W_2}=(W_2^T(softmax(Wa) - y)) \otimes \sigma'(W_1x)x^T$$

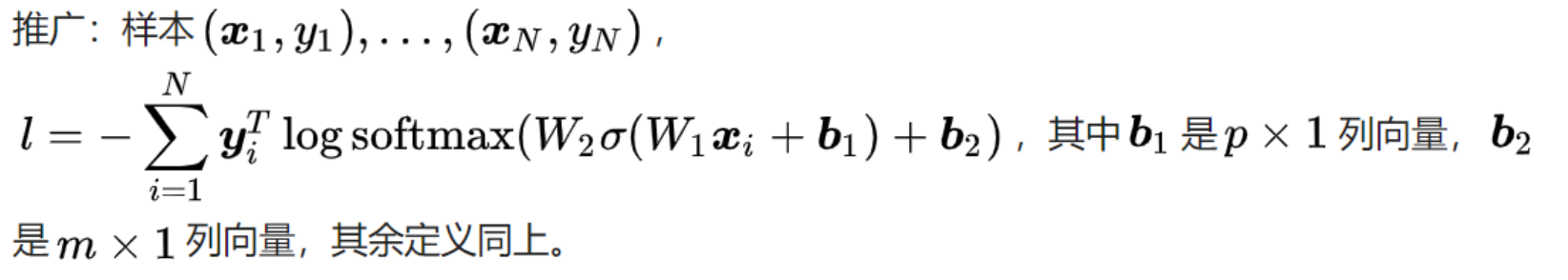

6.

7. 方法1：直接硬算

8. 方法2：矩阵表示

   • $$X = [x_1, x_2, ..., x_N]\\ A_1 = [a_{1,1}, a_{1, 2}, ..., a_{1,N}] = W_1X + b_11^T\\ H_1 = [h_{1,1}, h_{1, 2}, ..., h_{1,N}] = \sigma(A_1)\\ A_2 = [a_{2,1}, a_{2, 2}, ..., a_{2,N}] = W_2H_1 + b_21^T\\ \frac{\partial l}{\partial A_2}=[softmax(a_{2, 1}) - y_1, ..., softmax(a_{2, N}) - y_N]\\ dl = tr(\frac{\partial l}{\partial A_2}^TdA_2) \\= tr(\frac{\partial l}{\partial A_2}^TdW_2H_1) + tr(\frac{\partial l}{\partial A_2}^TW_2dH_1) + tr(\frac{\partial l}{\partial A_2}^Tdb_21^T) \\=tr((\frac{\partial l}{\partial A_2}H_1^T)^TdW_2)+tr((W_2^T\frac{\partial l}{\partial A_2})^TdH_1)+tr((\frac{\partial l}{\partial A_2}1)^Tdb_2) \\ dl_2 = tr((W_2^T\frac{\partial l}{\partial A_2})^TdH_1) \\ = tr((W_2^T\frac{\partial l}{\partial A_2})^T(\sigma'(A_1) \otimes dW_1x)) \\+tr((W_2^T\frac{\partial l}{\partial A_2})^T(\sigma'(A_1) \otimes db_11^T)) \\= tr((W_2^T\frac{\partial l}{\partial A_2}\otimes\sigma'(A_1)x^T)^T dW_1)) \\+tr((W_2^T\frac{\partial l}{\partial A_2}\otimes\sigma'(A_1)1)^T db_1))$$

9. $l(A)=\sum_{i=1}^m(-y_iA^T x_i+ln(1 + e^{A^T x_i}))​$, 给出牛顿迭代$A^{t+1} = A^t - (\frac{\partial^2 l(A)}{\partial A \partial A^T})^{-1}\frac{\partial l(A)}{\partial A}​$的形式(求$\frac{\partial l(A)}{\partial A}, \frac{\partial^2 l(A)}{\partial A \partial A^T}​$)

10. 一阶导数 $$dl = \sum_{i=1}^m-y_idA^T x_i + \sum_{i=1}^m \frac{e^{A^Tx_i}(dA^Tx_i)}{1+e^{A^Tx_i}} \\=\sum_{i=1}^m-(x_iy_i)^TdA + \sum_{i=1}^m \frac{(x_ie^{x_i^TA})^TdA}{1+e^{A^Tx_i}} \\ = (-\sum_{i=1}^mx_i(y_i - p_1(x_i;A)))^TdA \\ \longrightarrow \frac{\partial l}{\partial A} = -\sum_{i=1}^mx_i(y_i - p_1(x_i;A))$$

11. 二阶导数

12. 法1

    $$设\ p =-\sum_{i=1}^mx_i(y_i - p_1(x_i;A))\\ =-\sum_{i=1}^mx_i(y_i - \frac{e^{A^Tx_i}}{1 + e^{A^Tx_i}})\\ dp_j = tr(\sum_{i=1}^mx_{ij}d\frac{e^{A^Tx_i}}{1 + e^{A^Tx_i}}) \\ =tr(\sum_{i=1}^mx_{ij}\frac{1}{(1 + e^{A^Tx_i})^2}de^{A^Tx_i}) \\ =tr(\sum_{i=1}^mx_{ij}\frac{1}{(1 + e^{A^Tx_i})^2}e^{A^Tx_i}dA^Tx_i) \\ =tr(\sum_{i=1}^mx_{ij}x_i^T\frac{1}{(1 + e^{A^Tx_i})^2}e^{A^Tx_i}dA) \\ =tr(\sum_{i=1}^m(x_{ij}x_i^T\frac{1}{(1 + e^{A^Tx_i})^2}e^{A^Tx_i})^TdA) \\ =tr(\sum_{i=1}^m(x_{ij}x_i^Tp_1(x_i;A)(1-p_1(x_i;A)))^TdA) \\ dp = [dp_1;dp_2;...;dp_n] = \frac{\partial p}{\partial A} = \sum_{i=1}^m(x_ix_i^Tp_1(x_i;A)(1-p_1(x_i;A)) \\ \longrightarrow\frac{\partial^2 l(A)}{\partial A \partial A^T} = \frac{\partial p}{\partial A} = \sum_{i=1}^m(x_ix_i^Tp_1(x_i;A)(1-p_1(x_i;A))$$

13. 法2 $$设\ p =-\sum_{i=1}^mx_i(y_i - p_1(x_i;A))\\ =-\sum_{i=1}^mx_i(y_i - \frac{e^{A^Tx_i}}{1 + e^{A^Tx_i}})\\ dp = \sum_{i=1}^mx_{i}d\frac{e^{A^Tx_i}}{1 + e^{A^Tx_i}}\\ =\sum_{i=1}^mx_{i}\frac{1}{(1 + e^{A^Tx_i})^2}e^{A^Tx_i}dA^Tx_i\\ \\ =(\sum_{i=1}^mx_{i}x_i^T\frac{1}{(1 + e^{A^Tx_i})^2}e^{A^Tx_i})^TdA \\ \longrightarrow\frac{\partial^2 l(A)}{\partial A \partial A^T} = \frac{\partial p}{\partial A} = \sum_{i=1}^m(x_ix_i^Tp_1(x_i;A)(1-p_1(x_i;A))$$
