矩阵函数矩阵求导方法¶

1 向量对向量的导数¶

定义(即为jacobi矩阵)

$\frac{\partial f_{p\times1}}{\partial x_{\times_{m\times1}}} = \left[ \begin{matrix} \frac{f_1}{x_1} & \frac{f_2}{x_1} & ... & \frac{f_p}{x_1} \\ \frac{f_1}{x_2} & \frac{f_2}{x_2} & ... & \frac{f_p}{x_2} \\ ... & ... & ... & ... \\ \frac{f_1}{x_m} & \frac{f_2}{x_m} & ... & \frac{f_p}{x_m} \\ \end{matrix} \right]_{m\times p} \\ df = \frac{\partial f}{\partial x}^Tdx$

注意，这里是根据标量对向量的求导发展而来的。

2 矩阵对矩阵的导数¶

2.1 矩阵的向量化¶

定义

$Vec(X) = [X_{11},...,X_{m1}, X_{12},...,X_{m2}, ...., X_1n,...,X_{mn}]^T$

为矩阵的向量化

2.2 矩阵的导数¶

定义 $\frac{\partial F}{\partial X} = \frac{\partial Vec(F)}{\partial Vec(X)}_{mn\times pq}$
导数与微分的联系 $Vec(dF) = \frac{\partial F}{\partial X}^T Vec(dX)$
说明
此定义和标量对矩阵求导定义不兼容，此处为 $mn\times1$ 的向量，记前文矩阵为 $\nabla_Xf$ ，其大小为 $m\times n$ , 有 $\frac{\partial F}{\partial X} = Vec(\nabla_Xf)$ 。
标量对矩阵的二阶导数，即 $Hessian$ 矩阵，定义为 $\nabla_X^2f = \frac{\partial^2 f}{\partial X^2}_{mn\times mn}$ ,这是个对称矩阵。对于向量 $\frac{\partial f}{\partial X}$ 或者举着 $\nabla_Xf$ 求导都可以，但是从 $\nabla _Xf$ 求更方便。
$\frac{\partial F}{\partial X}=\frac{\partial Vec(F)}{\partial X} = \frac{\partial F}{\partial Vec(X)} = \frac{\partial Vec(F)}{\partial Vec(X)}$ , 求导时矩阵被向量化，弊端是这在一定程度破坏了矩阵的结构，会导致结果变得形式复杂；好处是多元微积分中关于梯度、Hessian矩阵的结论可以沿用过来，只需将矩阵向量化。比如在牛顿法更新 $\nabla X$ ，满足 $Vec(\Delta X) = - (\nabla_X^2f)^{-1}Vec(\nabla_Xf)$ 。
在资料中，矩阵对矩阵的导数还有其它定义，比如 $\frac{\partial F}{\partial X} = \left[ \frac{\partial F_{kl}}{\partial X} \right]_{mp\times nq}$ , $\frac{\partial F}{\partial X} = \left[ \frac{\partial F }{\partial X_{ij}} \right]_{mp\times nq}$ , 它能兼容上篇中的标量对矩阵导数的定义，但微分与导数的联系不够简明，不便于计算和应用。

2.3 运算法则¶

2.3.1 向量化技巧¶

线性： $Vec(A+B) = Vec(A) + Vec(B)$
矩阵乘法: $Vec(AXB)=(B^T\otimes A)Vec(X)$
证明： $对于向量:Vec(ab^T) = b\otimes a\\ 令B=[b_1, b_2,...,b_q], 并且e_1, e_2,...,e_q是p\times 1的基本向量\\ B = \sum_{i = 1}^q b_i e_i^T\\ Vec(ABC) = Vec(\sum_{i =1}^q Ab_ie_i^TC) \\= \sum_{i=1}^q Vec((Ab_i)(C^Te_i)^T) \\= \sum_{i = 1}^q (C^Te_i)\otimes (Ab_i)) \\ = (C^T\otimes A)\sum_{i=1}^q(e_i\otimes b_i) \\ = (C^T\otimes A)Vec(B)$
特例： $Vec(A_{mn}B_{np}) =(I_p\otimes A)Vec(B)=(B^T\otimes A)Vec(I_n)=(B^T\otimes I_m)Vec(A)$
转置
$Vec(A^T)=K_{mn}Vec(A)\\ K_{mn}(mn\times mn)是交换矩阵,将按列优先的向量化变为按行优先的向量化。 \\ K_{23} = \left[ \begin{matrix} 1 & 0 & 0 & 0 & 0 & 0\\ 0 & 0 & 1 & 0 & 0 & 0\\ 0 & 0 & 0 & 0 & 1 & 0\\ 0 & 1 & 0 & 0 & 0 & 0\\ 0 & 0 & 0 & 1 & 0 & 0\\ 0 & 0 & 0 & 0 & 0 & 1 \end{matrix} \right] , Vec(A^T) = \left[ \begin{matrix} A_{11} \\ A_{12} \\ A_{13} \\ A_{21} \\ A_{22} \\ A_{23} \end{matrix} \right] , Vec(A) = \left[ \begin{matrix} A_{11} \\ A_{21} \\ A_{12} \\ A_{22} \\ A_{13} \\ A_{23} \end{matrix} \right]$
逐元素乘法
$Vec(A\odot B)=diag_{mn\times mn}(A)Vec(B)$ , 其中 $diag(A)$ 是 $A$ 按列优先限排成的对角阵
注意：若矩阵函数F是矩阵X经加减乘法、逆、行列式、逐元素函数等运算构成，则使用相应的运算法则对F求微分，再做向量化并使用技巧将其它项交换至 $vec(dX)$ 左侧，对照导数与微分的联系 $Vec(dF) = \frac{\partial F}{\partial X}^T Vec(dX)$ 。特别地，若矩阵退化为向量，对照导数与微分的联系 $df = \frac{\partial f}{\partial x}^Tdx$ ,即能得到导数。

2.3.2 链式法则¶

已知 $\frac{\partial F}{\partial Y}$ , 且 $Y$ 是X的函数，如何求 $\frac{\partial F}{\partial X}$ 呢？ $Vec(dF)=\frac{\partial F}{\partial Y}^TVec(dY) \\ = \frac{\partial F}{\partial Y}^T \frac{\partial Y}{\partial X}^TVec(dX) \\ = (\frac{\partial Y}{\partial X}\frac{\partial F}{\partial Y})^TVec(dX) \\ \longrightarrow \frac{\partial F}{\partial X} = \frac{\partial Y}{\partial X}\frac{\partial F}{\partial Y}$

2.3.3 Kronecker积和交换矩阵恒等式¶

$(A\otimes B)^T = A^T\otimes B^T$

证明： $\left[ \begin{matrix} a_{11}B & a_{12}B \\ a_{21}B & a_{22}B \end{matrix} \right]^T =\left[ \begin{matrix} a_{11}B^T & a_{21}B^T \\ a_{12}B^T & a_{22}B^T \end{matrix} \right] =A^T\otimes B^T$

$Vec(ab^T) = b \otimes a$
$(A\otimes B)(C \otimes D) = (AC)\otimes(BD)$

证明： $设：F=D^TB^TXAC\\ Vec(dF) = Vec(d(D^TB^TXAC)) \\=Vec(D^TB^TdXAC) \\=((AC)^T\otimes (BD)^{T})Vec(dX) \\ = ((AC)^T\otimes (BD)^{T})Vec(dX) \\ = ((AC) \otimes (BD))^{T}Vec(dX) \\ \longrightarrow \frac{\partial F}{\partial X} = (AC) \otimes (BD) \\设置 Y = B^TXA, 则\frac{\partial F}{\partial Y} = C \otimes D, \frac{\partial Y}{\partial X} = A \otimes B \\根据链式法则:(AC)\otimes(DB) = (A\otimes B)(C\otimes D)$

$K_{mn} = K_{nm}^T, K_{mn}K_{nm} = I$

证明： $Vec(A^T)=K_{mn}Vec(A) \\ Vex(A) = K_{mn}^{-1}Vec(A^T)\\ \longrightarrow K_{nm} = K_{mn}^{-1} \\因为K_{nm}每一行有且只有一个1，所以是正交矩阵，K_{mn}=K_{nm}^T且K_{nm}K_{nm}^T=I$

$K_{pm}(A\otimes B)K_{nq} = B \otimes A， A是m\times n矩阵，B是p\times q矩阵$

证明： $Vec(AXB^T)=(B\otimes A)Vec(X) \\= K_{pm}Vec(BX^TA^T) \\=K_{pm}(A\otimes B)Vec(X^T) \\=K_{pm}(A\otimes B)K_{pq}Vec(X)$

2.4 例题¶

$Vec(dF) = Vec(d(AX)) = Vec(AdX)=(I\otimes A)Vec(dX) \\ \longrightarrow \frac{\partial F}{\partial X} = I \otimes A$
如果退化向量 $dF = (A^T)^TX\longrightarrow \frac{\partial F}{\partial X} = A^T$
$df = \frac{1}{|X|}|X|tr(X^{-1}dX) = tr(((X^{-1})^T)^TdX) \\ p = \frac{\partial f}{\partial X} = (X^{-1})^T \\ Vec(dp) = Vec(d(X^{-1})^T) \\ = Vec((-X^{-1}dXX^{-1})^T) \\ = -K_{nn}Vec(X^{-1}dXX^{-1}) \\ = -K_{nn}((X^{-1})^T\otimes X^{-1})Vec(dX) \\ = -((X^{-1}\otimes (X^{-1})^TK_{nn})^TVec(dX)$
$Vec(dF) = Vec(A(exp(XB)\odot (dXB))) \\= (I_p\otimes A)diag(exp(XB))Vec(dXB) \\= (I_p\otimes A)diag(exp(XB))(B^T\otimes I_m)Vec(dX) \\ = ((B\otimes I_m)diag(exp(XB))(I_p\otimes A^T))^TVec(dX) \\ \longrightarrow \frac{\partial F}{\partial A} = (B\otimes I_m)diag(exp(XB))(I_p\otimes A^T)$

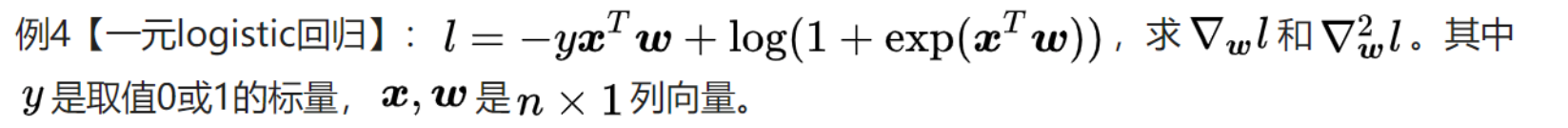

$dl = -yx^Tdw+\frac{exp(x^Tw)x^Tdw}{1+exp(x^Tw)} \\ = x^T(\sigma(x^Tw) - y)dw \\ p = \frac{\partial l}{\partial w} = x(\sigma(x^Tw) - y) \\ dp = x\sigma'(x^Tw)x^Tdw = (xx^T\sigma'(x^Tw))Tdw \\ \longrightarrow \frac{\partial^2 l}{\partial w^2} = (B\otimes I_m)diag(exp(XB))(I_p\otimes A^T)$

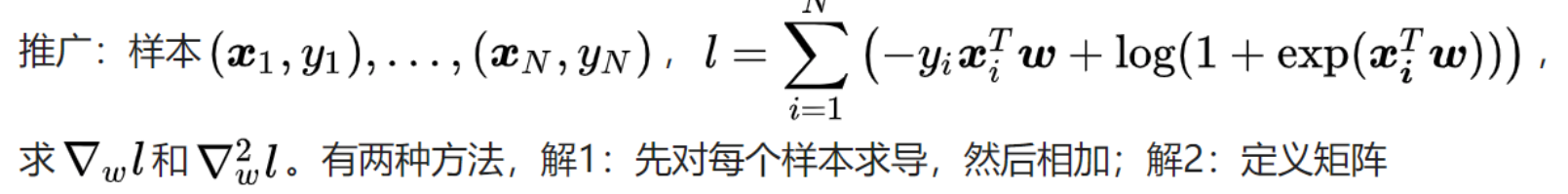

$$ X = \left[ $\begin{matrix} x_1^T \\ x_2^T \\ ... \\\ x_n^T \end{matrix}$

\right] , y = \left[ $\begin{matrix} y_1 \\ y_2 \\ ... \\\ y_n \end{matrix}$ \right] \ l = -y^TXw + 1^Tlog(1+exp(Xw))\ dl = tr(-y^TXdw)+tr(1^T(\frac{exp(Xw)}{1+exp(Xw)}\odot (Xdw))) \ = tr(X^T(\sigma(Xw)-y)^Tdw) \ \longrightarrow p = \frac{\partial l}{\partial w} = X^T(\sigma(Xw)-y) \ dp = X^T(\sigma'(Xw)\odot (Xdw))=X^Tdiag(\sigma'(Xw))Xdw \ = (X^Tdiag(\sigma'(Xw))X)dw \ \longrightarrow \frac{\partial^2 l}{\partial w^2} = X^Tdiag(\sigma'(Xw))X $$

$g=\frac{\partial l}{\partial W} = (softmax(Wx)-y)x^T\\ a = Wx\\ dg = d((softmax(a)-y)x^T) \\ = dsoftmax(a)x^T \\ = \frac{(e^a\odot da)1^Te^a-e^a1^T(e^a\odot da)}{(1^Te^{a})^2}x^T \\ = \left(\frac{(e^a\odot da)}{1^Te^{a}}-\frac{e^a1^T(e^a\odot da)}{(1^Te^{a})^2}\right)x^T \\ = \left(\frac{diag(e^a)}{1^Te^{a}}-\frac{e^a1^Tdiag(e^a)}{(1^Te^{a})^2}\right)dax^T \\ = (diag(softmax(a) - softmax(a)softmax(a)^T))dax^T \\ = (diag(softmax(a) - softmax(a)softmax(a)^T))dWxx^T \\ Vec(dg) \\= Vec((diag(softmax(a) - softmax(a)softmax(a)^T))dWxx^T) \\ =(xx^T)\otimes (diag(softmax(Wx) - softmax(Wx)softmax(Wx)^T) Vec(dw) \\ =((xx^T)\otimes (diag(softmax(Wx) - softmax(Wx)softmax(Wx)^T))^T Vec(dw) \\ \longrightarrow \frac{\partial^2 l}{\partial W^2}=(xx^T)\otimes (diag(softmax(Wx) - softmax(Wx)softmax(Wx)^T)$
注意， $softmax(Wx)=\frac{e^{Wx}}{1^Te^{Wx}}$ 中，分母是一个常数，表示每个分子都要除以这个常数。可以证明按照 $\sigma(Wx)$ 的求导法则即可。 $d\frac{e^{Wx}}{1^Te^{Wx}}=d\frac{1}{1^Te^{Wx}}e^{Wx}+\frac{1}{1^Te^{Wx}}de^{Wx} \\=\frac{de^{Wx}1^Te^{Wx}-e^{Wx}d(1^Te^{Wx})}{(1^Te^{Wx})^2}$
